TMP HydroSpine Marine Electronics Graph Power Wiring Harness

TMP HydroSpine
Marine Electronics Graph Power Wiring Harness

Whether you're just powering 2 Graphs,
or 6 Graphs, a Full Network and a LiveScope.
The HydroSpine Wiring Harness will get the job done!
Providing you with sufficient power,
while minimizing interference and voltage drop.

The HydroSpine provides two main power leads.
One for the Console and one for the Bow, all connected onto one harness.
The Power Terminal Blocks make it quick and easy to install
multiple graphs or accessories at the bow and console.
All protected by our 30 Amp Main Breaker w/ Manual Reset Lever.

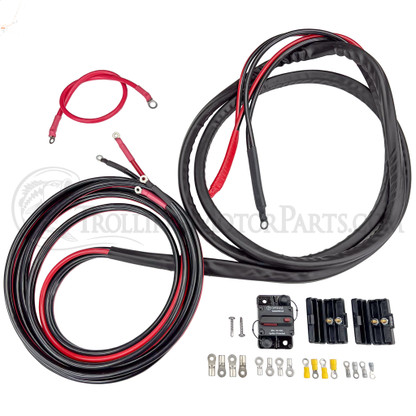

KIT INCLUDES:

- 26' 8AWG Double Bonded 8/2 Tinned Copper Power Lead (Bow)
- 13' 8AWG Double Bonded 8/2 Tinned Copper Power Lead (Console)
- 30 Amp Breaker w/ Manual Reset On/Off Switch
- 2' Main Power Jumper Wire
- Bow Power Terminal Block
- Console Power Terminal Block
- Installation Hardware & Connectors

TECH TIP:
It is recommended that all Graphs & Accessories have their own in-line fuse.
This kit comes with a 30 Amp Main Breaker to protect the Wiring Harness.
This kit does not come with individual In-Line Fuse Holders for each accessory.
If you need additional In-Line Fuse Holders, click the link below:
