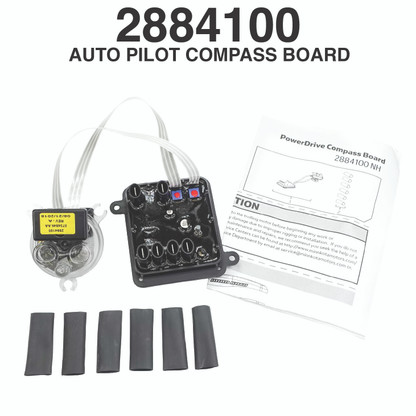

Minn Kota AutoPilot Compass Control Board

Good Replacement for Auto Pilot Compass Board

Posted by Rich on Aug 4th 2024

Replaced original Auto Pilot Compass Board. It did take some adjustments to make it fit. Firstly the control board needs to be mounted 180deg from the old board, but wires were long enough to reach no problem. Second the included shrink covers are too stiff/thick which makes them difficult to use. I ended up cutting them in half and only using them over the exposed metal connectors. Third I had to cut off the screw leafs because they are not needed and they interfere with letting the board snap into place fully. Fourth I had to grind down the LED stem from the top cover about 1/8in because the new board is thicker than the original due to the conformal coating. The new compass worked great and my auto pilot works again. Thank you.
